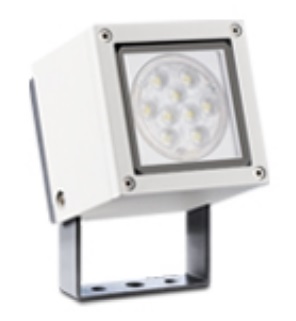

By its very name CANNON has a robust construction and is suitable in applications that require high lighting levels from medium to long distance. A wide range of mounting accessories including ground mount base, pole top mount, and pole/ wall mount arm is available. This luminaire utilizes a high power COB LED in three steps SDCM. CANNON is available in two sizes with mid-narrow, mid-wide and very wide beam angle in 2700K, 3000K and 4000K. The pure aluminium reflector used is designed by high-end lighting engineering software. The integrated aiming scale allows the lighting designer to have confidence that the light distribution will be exact on any surface. CANNON is suitable to light up medium size to large size objects or areas such as billboards, building facades, public parks, pedestrian, statues and public landmarks.

The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.  Colour: silver grey , all exterior parts are stainless steel, polycarbonate cover, with partial frosting for uniform light diffraction, silicon gasket, with connection coupling and 3‑pin connector on the right, tilt range: 220°, cable gland: M16 with 1 m cable H05RN‑F3G1, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 20° / 88°, luminous flux: 585 lm, wattage: 11 W, delivered lumens 53 lm/W, protection type IP65, protection class I, impact resistance IK10, windage area 0,025 m², dimensions (L×H×W): 641 × 43 × 40 mm, weight 1.5 kg

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 236 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Housing: cast aluminium, with connec- tion cable L 850mm. 0°-40° tilt, 360° rotation. Lockable angles of tilt and rotation.
