LUMASCAPE

INGROUND UPLIGHT

OUTDOOR LIGHTING

TERRALUZ TE5_LS3150_65D

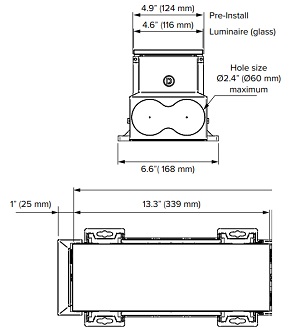

A high-output linear in-ground brings together the best technology in a simple yet stylish linear form factor with bezel-less edge-to-edge glass finish. With a ±15º tilt adjusment, the Terraluz TE5 is a versatile, highperformance luminaire. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ suits both highly granular DMX/RDM control requirements and standard white light dimming via common protocols. Fixtures can be installed endto-end for continuous linear lighting. Available in white, color-changing and tunable white light engines. DIMENSION: 339(L)*124(W).

Specification

Power

12W/330MM

Color Temperature

3000K

Light Source Type

LED

Lumen Output

7167LM

Finishing

ALUMINIUM BLACK

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

LINEALIGHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white ral 9003 finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

PLATEK

WALL LIGHT

DECORATIVE LIGHTING

Outdoor suspended pendant body in primary aluminum alloy. Diffuser made of stainless steel mesh AISI 304. Optical system consisting of high-intensity COB LED with CRI 90. No visible screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. The product is painted following a continuous two step paint process which allows to generate a single thick protective coating and UV rays. IK06
