IGUZZINI

WALLWASHER

OUTDOOR LIGHTING

LINEALUCE_UG44

Luminaire for ceiling, wall, or surface installation, available in monochromatic, RGBW, Tunable White, and Tunable Warm LED. Made of extruded aluminium with die-cast zamak end caps and liquid acrylic coating for durability, it features a sealed optical compartment with 5mm glass. Offers multiple optics—Wall Grazing, Microlouvre, Accent, Flood, and No-Dot—with various beam options. Available in 2200K–4000K, RGBW, and Tunable White versions. Rated IP66, IK06, with A2 stainless steel screws (driver

Specification

Power

16W/M

Color Temperature

TW 2700K - 4000K

Light Source Type

LED

Lumen Output

1122M/M

Finishing

GREY

IP Rating

IP66

Color Rendering

>90

Driver

0-10V DRIVER

WE-EF

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.

FORMALIGHTING

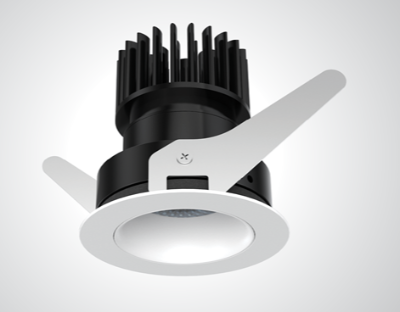

RECESSED DOWNLIGHT

INDOOR LIGHTING

Moto Rino is intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle, and dim level settings previously recorded via the CASAMBI™ control app. Available in standard and backlight versions, trim and trimless. In the Backlight version, the spotlight and backlight can be controlled independently, so an ambient effect can be easily created. Two DC motors drive the movements of the fixture, which is tiltable vertically up to 30° and horizontally 330° Pan. The color temperature avaiable 2700k,3000k,3500k and 4000k.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
