Product Detail
Home Products Detail

Products

LUCI

LED STRIP
INDOOR LIGHTING
LFY7-T1000W-L30-CL-I-10

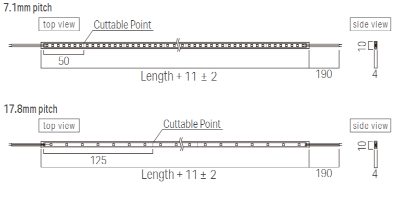

LED luminaire come with 2 types of LED pitch 7.1 or 17.8mm for profile and cove lighting. 5 types of wattage 2W/m to 15W/m in same LED pacakge to match CCT. High efficient LED package achieving up to 185 lm/W

Specification

Power
10W/M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1458LM/M
Finishing
WHITE
IP Rating
IP20
Color Rendering
>90
Driver
0-10V DRIVER

See more

MEYER
POLE LIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The natural white LED light source with a diffused light distribution is composed of 240 topled LEDs. The device body is made of aluminium and features a white ral 9003 finish, processed by means of coating; the diffuser is made of pmma; the mounting frame is made of aluminium, with a white ral 9003 finish, processed by means of coating. The ingress protection degree is IP20; the total weight is of 2.1 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
TARGETTI
RECESSED DOWNLIGHT
INDOOR LIGHTING

Black painted die cast aluminium body and sink. Passive dissipation system

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1932 lm, with a 128.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.
