LINEALIGHT

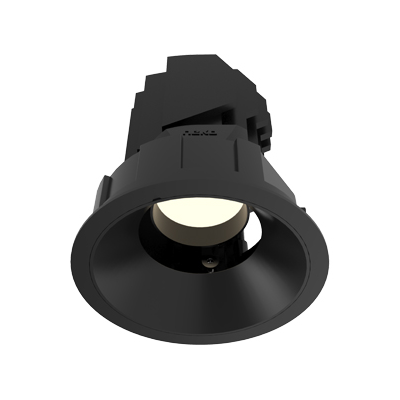

The asymmetrical INVADER Wallwash spotlight blends seamlessly into an area equipped with ceiling spotlights for its unobtrusive design. The asymmetric light emission is achieved by means of individual shaping of the luminaire head. An attractive mix of downlights and INVADER Wallwash spotlights creates a high quality of stay in the most modern ambience.One of the key benefits of the INVADER family is the ability to replace the downlight cone with a wallwash cone without replacing the bracket.

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

High performance wide angle light LED MODULE, design for low depth, narrow width lighting distribution system. DC24V constant voltage driven technology. Suitable for huge signage and ceiling light application. Easy to install and flexible, good for on-site installation. Come with 15 modules in one chain. Significant reduction in the quantity modules for larger lighting area. IP67

PANEL DIMENSION : 1200 MM (L)x600 MM (W)x 100 MM(D)

Robust in ground grazer made of V4A stainless steel available in standard lengths and 10° and 30° beam optic. Oceanos has an environmental resistance of IP67. This is made to the unique polyurethane encapsulation. Different optics enable adaptability to different projects. The 10° optic suit well for wall grazing, as the 30° and opal are suitable for accent lighting. Oceanos has an IK10 classification hence is very robust. The ability to withstand a pressure of 30kN is equivalent to being traversed by a vehicle according to DINEN605982.
