SPARK

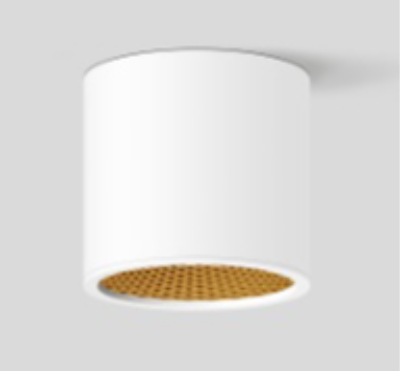

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a chalk white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.13 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0,17 m length. The device features protection class III and can be ceiling-mounted with an outer casing, code 98502 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Single emission uplights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 219 lm, with a 109.5 lm/W nominal luminous efficacy.

The device body is made of ot58 brass and features a chrome finish, processed by means of galvanic chromium plating. The ingress protection degree is IP67; the total weight is of 0.130 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 2 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be floor-mounted with an outer casing, code 84918(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.
