IGUZZINI

RECESSED DOWNLIGHT
OUTDOOR LIGHTING
LBHC-RE-FR-F-B-9030-RF02-DS-I-05C-B-2-ST-1504

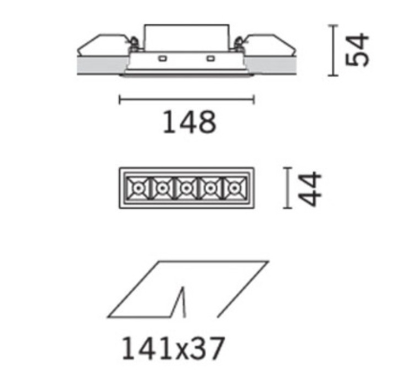

The Laser Blade is a compact, high-efficiency downlight designed for visual comfort and architectural precision. With miniaturized optics and a sleek 148 mm profile, it delivers 920 lumens at 79.3 lm/W, all while maintaining a low glare (LOR 85) and CRI of 90. Its pinpoint beam angle of 50° provides seamless circular light, ideal for refined, invisible lighting effects. Weighing just 0.34 kg, it combines advanced technology, flexible design, and award-winning innovation in a discreet IP20-rated

Specification

Power
8.6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
920LM
Finishing
GREY
IP Rating
IP20
Color Rendering
CRI 90
Driver
0-10V DRIVER

See more

PUK
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

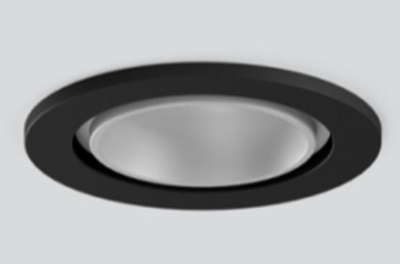

ound ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XHP35 HD LED. IP68 rating.
LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 5076 lm, with a 139.1 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The total absorbed power is 41 W. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

SIMES
BOLLARD
OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Shift Pole: Aluminium pole Ø 102 H 3000mm included. Pole must be fixed to the anchoring base (S.1469) to be securly buried in concrete or to the square plate (S.1468).

WIRING

Supply 0.2m cable section type H05RNF . Single cable entry sealed with B component epoxy resin, wired internally protected by silicon sheaths.. Isolation: CLASS II .

SPARK
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING
Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector have chrome black, silver and white finish available. Black finish and honeycomb accessory available upon request.
