FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

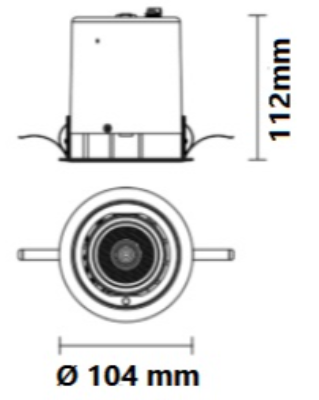

MOTO-GIMBALO 60 - TRIM_ M516MC24

Motorized Gimbal design recessed luminaire. Mounting trim and Gimbal head are made of cast aluminium. MotoGimbalo is available in 2 different sizes: 60mm and 130mm. The luminaire includes brackets for installation on ceiling thickness max. 25 mm. Two remote controlled DC motors drive the movements of the fixture. Moto-Gimbalo 60: tiltable 0-40° in two directions and rotatable 350°; Moto-Gimbalo 130: Tiltable 0-40° in all directions on a dual axis gimbals.

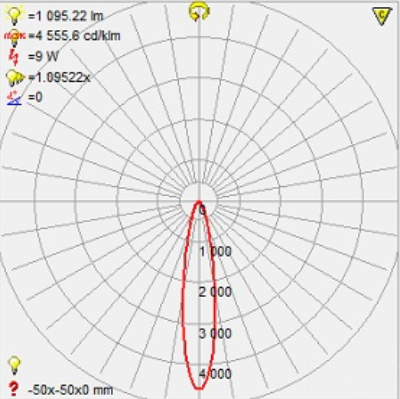

Specification

Power

9.4W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1095LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

SIMES

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

Surface mount ceiling luminaire made of aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. IP66

LIGHTFORMS

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a chalk white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.13 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0,17 m length. The device features protection class III and can be ceiling-mounted with an outer casing, code 98502 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
