UNILAMP

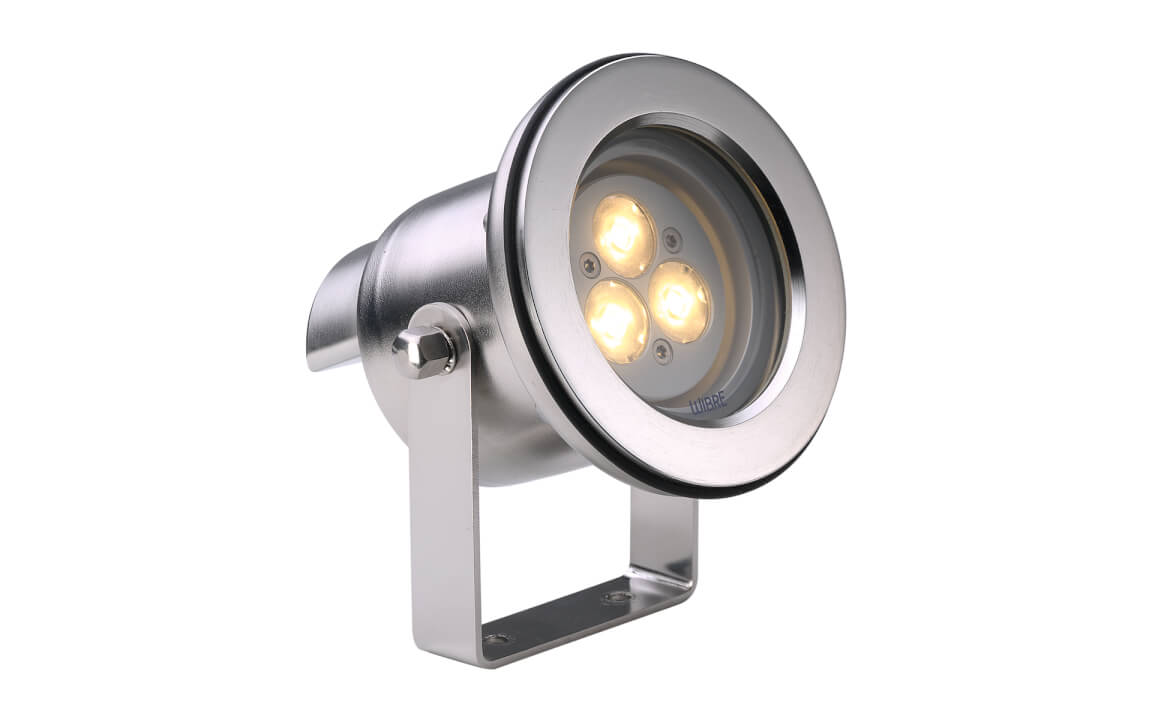

Luminaire made of aluminium alloy, aluminium and stainless steel. Clear synthetic cover with optical structure. Reflector made of pure anodised aluminium. Mounting plate with 3 fixing holes ø 6.5 mm. Angle 120° · Pitch circle ø 122 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 5 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V, During DC operation the LED power is reduced to 50 % DALI controllable. A basic isolation exists between power cable and control line. Safety class I. Protection class IP 65. Dust-tight and protection against water jets. Impact strength IK10. Protection against mechanical. impacts < 20 joule. c – Conformity mark.

Fixing base in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. AISI 301 Stainless-steel end caps for the extruded parts. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Recessed adjustable rectangular downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

DIMMING & TUNABLE Vertical mount / Wall mount linear light designed as an essential component of the architectural space in which it is used. A high quality light product with a focus on having a solid feel and continuity. Creates a unique lighting environment with various mounting methods, lengths, color temperatures, and control methods.
