Product Detail | Bloxlimited

KOIZUMI

WALLWASHER

INDOOR LIGHTING

XD91622L_29.3W

Double asymmetric wallwasher downlight made of die cast aluminium frame, aluminium or mirror finish cone. These light distributed so as to expand on both sides effectively illuminates both sides of fixtures as well as assuring illuminance of the base with leaked light, allowing a single light to play three roles. Fewer appliances are required, keeping the ceiling layout clear. Effective in fast-fashion stores, supermarkets or libraries with tall fixtures.

Specification

Power

29.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2280LM

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

PHOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

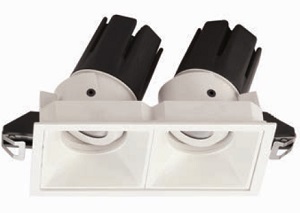

The Eyeconic Twin Mini Trim Square Adjustable is a recessed, directional downlight with a 62x124mm bezel and features a beautifully sculpted anti-glare baffle.

SPARK

TRACKLIGHT

INDOOR LIGHTING

LED Track fixed linear light system can be flexibly combined with track spotlights on the same track rail for general lighting & accent lighting. Ultra slim delicate design and flexible rotation for wall washing. It come in 3-wire, 4-wire and 6-wire surface / suspension track. Various of beam angle available.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
