KOIZUMI

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 9 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2718 lm, with a 148.5 lm/W nominal luminous efficacy.

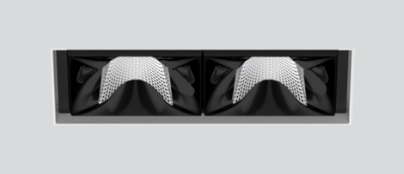

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

Luminaire made of aluminium alloy, aluminium and stainless steel. Clear synthetic cover with optical structure. Reflector made of pure anodised aluminium. Mounting plate with 3 fixing holes ø 6.5 mm. Angle 120° · Pitch circle ø 122 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 5 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V, During DC operation the LED power is reduced to 50 % DALI controllable. A basic isolation exists between power cable and control line. Safety class I. Protection class IP 65. Dust-tight and protection against water jets. Impact strength IK10. Protection against mechanical. impacts < 20 joule. c – Conformity mark.

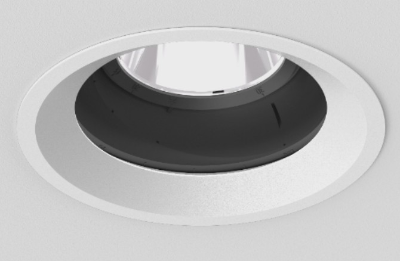

Colosseo Round series fully adjustable luminaire designed to accommodate any recessed lighting applications. Round-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Colosseo is available in three sizes with light head diameters of 75mm, 90mm and 120mm, vertical tiltable ±30°. Luminaire body inclusive of snoot-in cast aluminum, Easy relamping via removable front ring by snap-in catch actio.
