FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

M569BC33_903015DC10

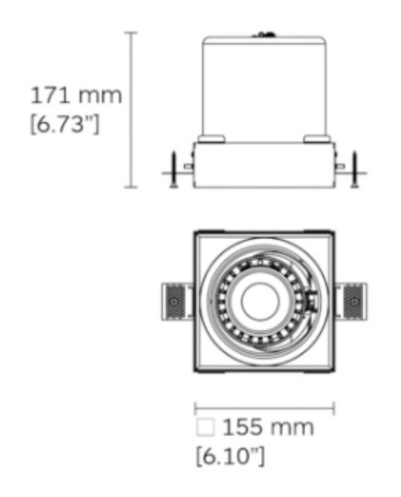

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power

22.3W

Color Temperature

3000K

Light Source Type

LED

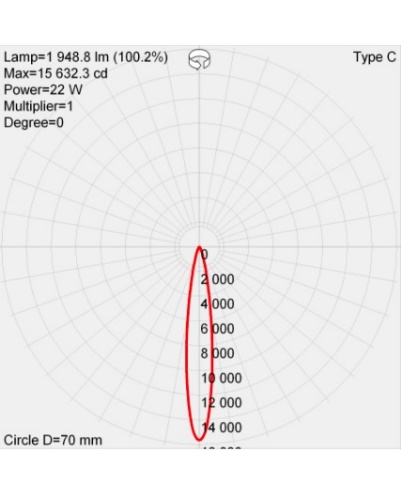

Lumen Output

1948.98LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

CASAMBI

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Lightplane Linear Up & Under is a compact and streamlined luminaire with a single extruded aluminium channel that provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting.The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+ White.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

MEYER

INGROUND UPLIGHT

OUTDOOR LIGHTING

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover and closure with 3 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H05RN‑F3G1, integral driver (AC/DC), CRI > 80, max 2 SCDM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 13°, luminous flux: 124 lm, wattage: 3 W, delivered lumens 41 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 135 mm, width 131 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
