Product Detail | Bloxlimited

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

M568BC33_903015DC10

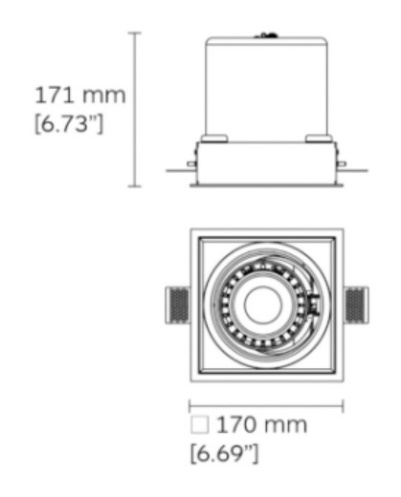

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Specification

Power

22.3W

Color Temperature

3000K

Light Source Type

LED

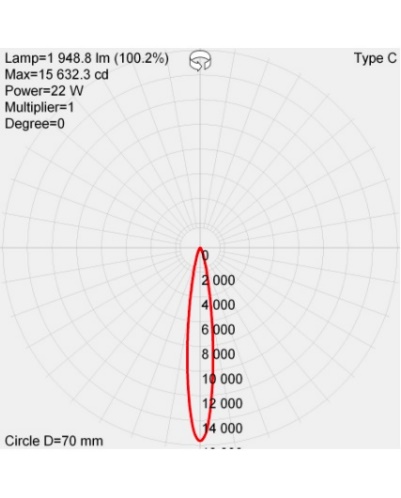

Lumen Output

1948.98LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

CASAMBI

SPARK

INGROUND UPLIGHT

OUTDOOR LIGHTING

The trimless inground series, specifically designed for applications such as airports, high-end hotels, and clubs boasts excellent heat dissipation and an innovative IP68-rated waterproof structure. It offers a verity of beam angles and anti-glare accessories, including honeycomb, bullsey, or deep-set louvers, catering to a wide rage of applications requiring flush integration with the ground. The ingress protection degree is IP67, IK07.

LUMASCAPE

SPIKE LIGHT

OUTDOOR LIGHTING

The Grevillea is an excellent option for delivering light on the ground plane, or for feature accent lighting without obstruction from low level plantings. Aim and tilt adjustability, a choice of finishes and long service life are all part of the package. The Grevillea also features d5 driver technology as a standard inclusion, providing a high level of control: When high output is required, it can be deployed in its full output, 6 W configuration; If a lower level of light is required, it can be set as low as 0.6 W, (either by the factory or in the field).

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 6 powerled LEDs. The device body is made of PC and features a black finish The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a metallization treatment. The ingress protection degree is IP20; the total weight is of 0.700 kg. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 44 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
