LINEALIGHT

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 12°, luminous flux: 2539 lm, wattage: 28 W, delivered lumens 91 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,032 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Luminaire can be mounted for up or down lighting. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.

Single emission led strip for indoor or outdoor application. The warm white LED light source with a spot light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 2300 lm, with a 121.1 lm/W nominal luminous efficacy. The device body is made of pu and features a white finish. The ingress protection degree is IP67; The power supply driver is not provided and is to be ordered separately. The total absorbed power is 19 W. The power supply cable is included and features a 1(M)x0.25m + 1(F)x0.25 m lengtH. The device features protection class III and can be wall lights, ceiling or floor-mounted

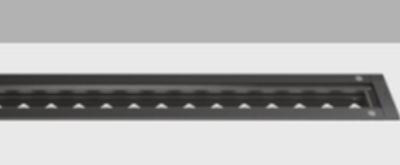

Lightplane 2.5 is a compact and streamlined luminaire that provides direct, indirect or direct-indirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.
