BEGA

POLE LIGHT

OUTDOOR LIGHTING

84_485_K3

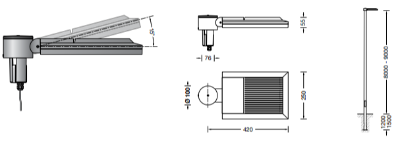

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology, colour graphite or silver, safety glass with optical structure, silicone gasket. Reflector made of pure anodised aluminium. Attack angle adjustable 0° or 15° for pole top ø 76 m. Inner diameter of the pole min. 62 / max.70mm. Slip fitter insert depth 100mm. Connecting cable X05BQ-F 5G1mm² .Cable length 10m.

Specification

Power

105W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

10587LM

Finishing

GRAPHITE

IP Rating

IP66

Color Rendering

CRI>80

Driver

DALI DRIVER

WE-EF

BOLLARD

OUTDOOR LIGHTING

IP66/IP67. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with two wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector;

SPARK

RECESSED MAGNETIC TRACK LINEAR

INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.
