TARGETTI

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, silicon gasket, with 3 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 7 mm, spacing 30 mm, 1 centre hole Ø 8.5 mm, tilt range: 140°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks, integral driver (AC/DC), 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 4°, luminous flux: 137 lm, wattage: 3 W, delivered lumens 46 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,01 m², dimensions: Ø 75 mm, width 125 mm, weight 0.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Available in 4 sizes, an extensive range of accessories and 15,000+ customisations, the ION R Downlight is an outstanding contender for all lighting needs. With 2 models, Standard and Wallwasher, the ION R Downlight can be specified for both horizontal and vertical lighting needs.

Pivot 2.0,projector for outdoor applications surface mounted (ceiling, wall, ground, spike), surface mounted (ceiling, wall, floor)Power consumption: 10W, 14WPower supply: 24Vdc

Lumen output at source: 1173 lm (3000K, 14W, CRI >90), 1397 lm (3000K, 14W, CRI 80), 821 lm (3000K, 10W, CRI >90), 978 lm (3000K, 10W, CRI 80)

Delivered lumen output: 1064 lm (3000K, 25°, 14W, CRI 80), 676 lm (3000K, 25°, 10W, CRI >90), 835 lm (3000K, 25°, 10W, CRI 80), 862 lm (3000K, 25°, 14W, CRI >90),1 COB LED, 3-st

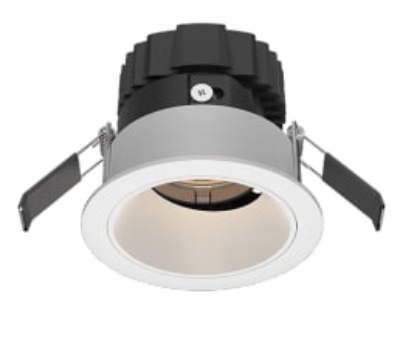

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in mirror chrome, white and black color. Cut-out Ø150mm. For indoor use. IP20.
