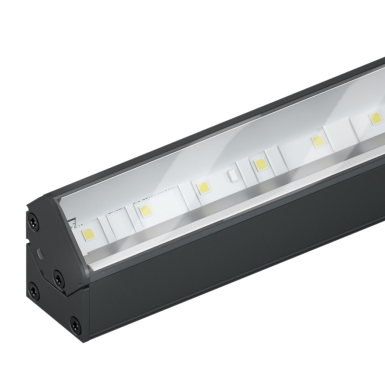

Compact luminaire with a clear encapsulation and reflectors for wall washing in outdoor areas. Alanod reflector technology for an excellent color mixing and homogeneous wall wash effect. Polyurethane is utilized in Xoolum R Wall Wash to make it more resistant to impact from salt water UV-light and solvents. Compact design and simple surface mounting enabling a discrete installation in the ceiling.

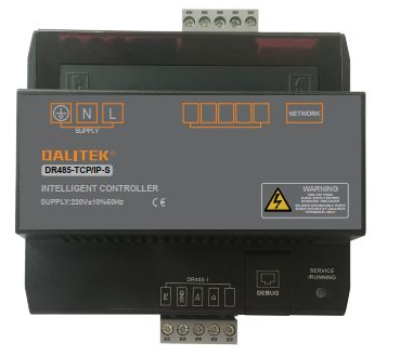

DR485-TCP/IP-S is a flexible network connection setup (bridge) for connecting RS485 networks and networks or devices based on the TCP-IP protocol. As an extension of DR485, DR485-TCP/IP-S can achieve a tree-type (main-net and subnet) network structure in a large space area through the TCP-IP network (whether it is the original or the new), and two groups of ports are respectively connected to the high-speed backbone network and the lower-speed subnet.

The RDM Isolator repeats DMX and e:pix (one way) as well as RDM (bi-directional) signals over a galvanic isolation barrier. The power supply has a separate isolation barrier (“external” selected) or is aligned with the output potential (“DMX power” selected). Main features include : 1 kV isolation, USITT DMX512A and e:pix compatibility, 1 MBaud data speed (epix), RJ45 power back selectable, Separate, fully isolated power supply port, Flexible data ports (RJ45 or screw terminals), Full ANSI E1.20-2010 RDM support, Status LEDs.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 24°, luminous flux: 419 lm, wattage: 6 W, delivered lumens 70 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
