DALITEK

CONTROL SYSTEM

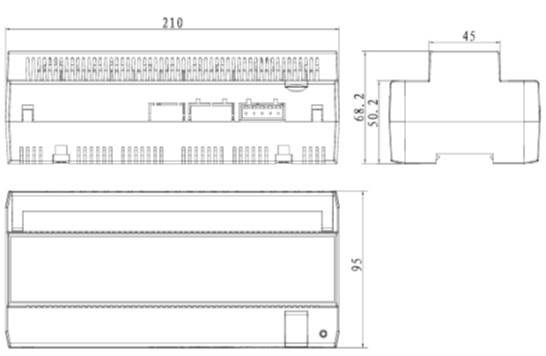

DM610FD-S

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation

Specification

Power

Color Temperature

Light Source Type

Lumen Output

Finishing

GREY

IP Rating

IP20

Color Rendering

Driver

0-10V DRIVER

SPARK

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

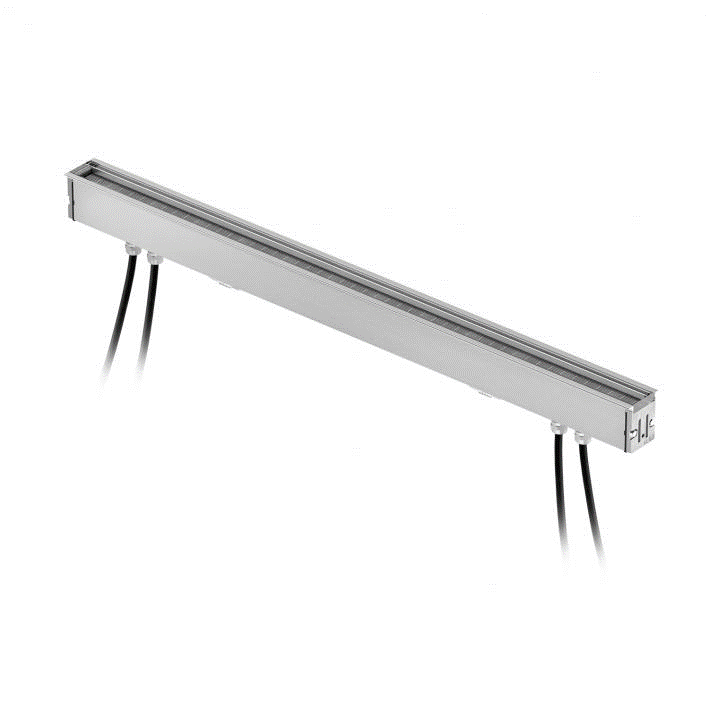

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
