FLOS

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System 15W;measurement Ø83mm x 90mm; ceiling cutout of Ø75mm with a narrow mounting trim; ceiling thickness 1-20mm; rotation 355° and pivot max. 30°; CCT 3000K with a System luminous flux of 1100lm;high color rendering at an index of CRI90.

FUSION FA10

FA10-9302422F-BB

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; LED 22W; measurement 309mm x 70mm; ceiling cutout of 298mm x 53mm with a narrow mounting trim; luminaire's weight is approximately 850g; CCT 3000K with an LED Output of 2300lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP20)

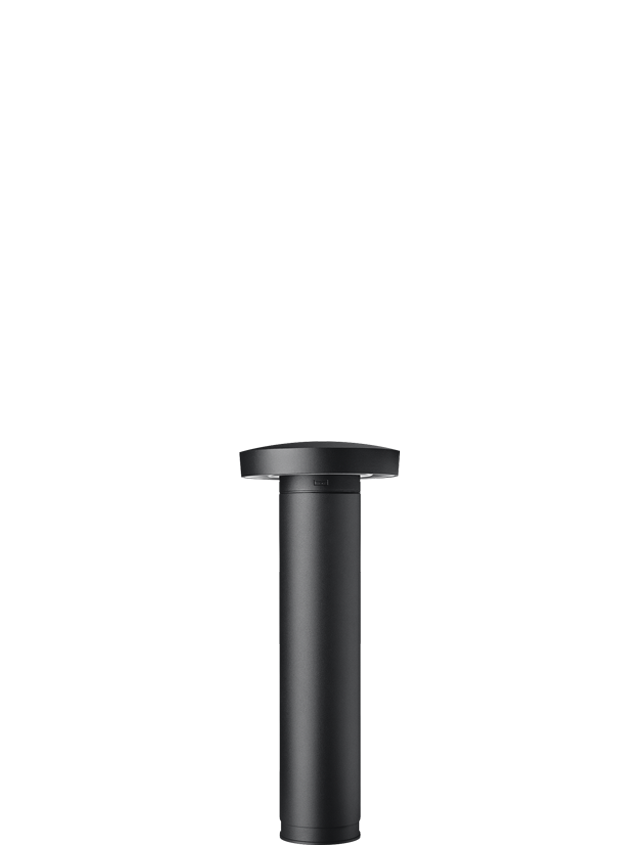

Outdoor luminaire with direct light street optic, designed to use LED lamps. The optical assembly is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The painting stage consists of a primer and an acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance.

Round spotlight made of aluminium housing and white powder coated material. Suitable for ceiling thickness of 2-25mm, spotlight height adjustable without tools flush with the ceiling. 360° rotatable and 90° tiltable. Passive cooling of the LEDs through improved heat sink geometry.
