Product Detail | Bloxlimited

FORMALIGHTING

TRACKLIGHT

INDOOR LIGHTING

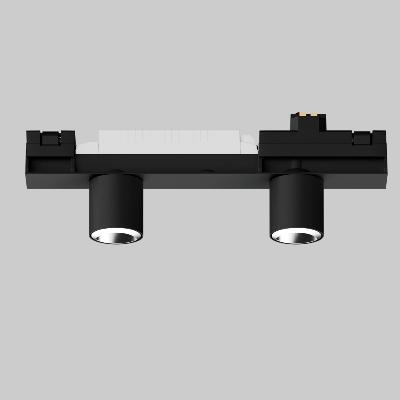

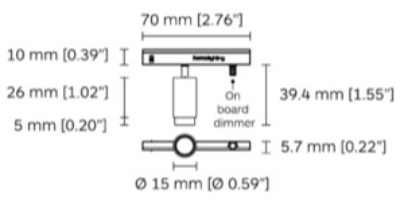

ZERO 15 ZOOM MINI TRACK_G96ABO11-9727BSD110

The Zero Mini Track Series is an ideal miniature spotlight designed to revolutionize showcase and display lighting. Zero Mini Track Series meets all the complex architectural lighting requirements by providing impressive light performance. Furthermore, it offers ease-of-use, thanks to its simple installation and integrated magnetic system for mounting accessories.

Specification

Power

1.7W

Color Temperature

2700K

Light Source Type

LED

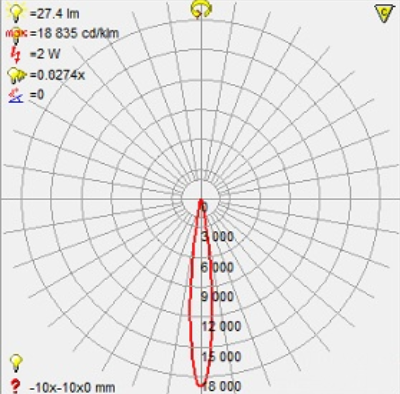

Lumen Output

28LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI97

Driver

0-10V DRIVER

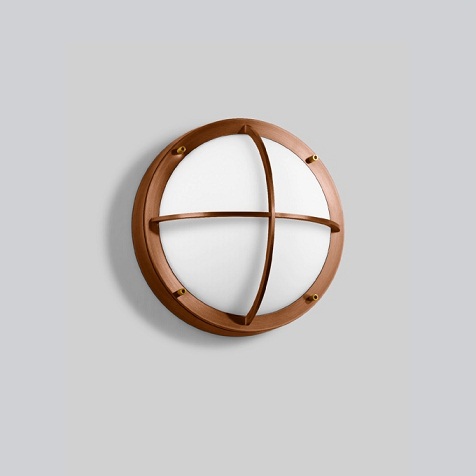

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire made of copper, brass and stainless steel Crystal glass coated 2 mounting holes ø 5.5 mm. Distance apart 108 x 108 mm, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I. Protection class IP 64 Dust-tight and protection against splash water. Impact strength IK07 Protection against mechanical, impacts < 2 joule, r – Safety mark c – Conformity mark.

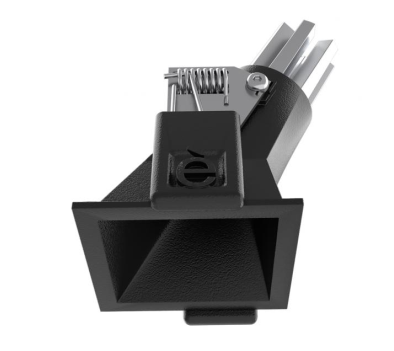

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 3 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 1.1 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 90 x 160 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.
