LUCE & LIGHT

FOOT LIGHT

OUTDOOR LIGHTING

CB10125WAI

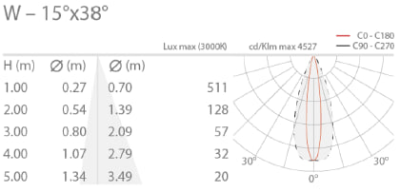

recessed for outdoor applications (not suitable for use in immersion in swimming pools or fountains); walkover; recessed (ceiling, wall, floor); Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 195 lm (3000K, 500mA); Delivered lumen output: 127 lm (3000K, 500mA, 21°); 1 power LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 15°x38°; CRI Colour Rendering Index: 80; Body material: body and trim in AISI 316L stainless steel.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

127lm

Finishing

TO MATCH WITH PATH FINISHES

IP Rating

IP65

Color Rendering

CRI80

Driver

DIMMABLE DRIVER

FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

A square or rectangular-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Luminaire body inclusive of snoot in cast aluminum. Easy relamping via removable front ring by snap-in catch action,available in a configuration of 1, 2 or 3 LED light heads, extending the trim size and shape from square to rectangular. Tiltable in two directions up to 25°.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.
