ELR

Sonic is a huge family of spotlight/ floodlight with LED light source. The family offers ground/ wall mount fixing, pole clamp and wall clamp array, indirect pole and wall light. The wide ranges of accessories like glare shield unit, tree strap, earth spike and anchorage bolt kit makes Sonic customizable for most application. Available in three sizes with a choice of five colors. Sonic is fiited with COB LED with hight CRI in 3000K or 4000K color temperature with 3 SDCM. The front glass cover is flush to the luminaire housing thus dust and water are not accumulated. High specular reflector are used in this luminaire family to achieve an outstanding light output ratio. Aiming can be done through graduated scale by tool. For ease if installation and improved thermal performance the control gear compartment is housed separately to the light engine. Sonic is an ideal choice to accentuate sculptures, walls, building facades, bushed and trees.

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

Luminaire made of copper, brass and stainless steel, Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz DC 198-280 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK06 Protection against mechanical impacts < 1 joule, r – Safety mark, c – Conformity mark.

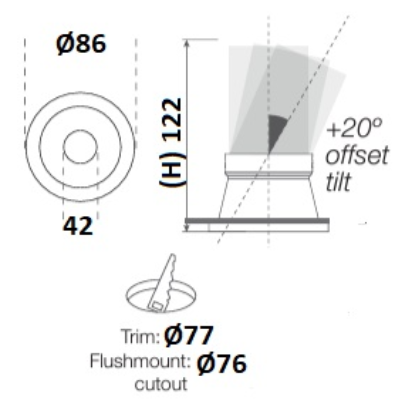

Recessed adjustable spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.
