CASTOR 3 MINI RD FIX DLR - 35N 35D

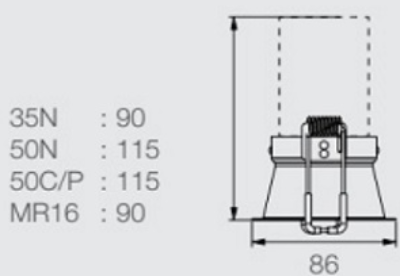

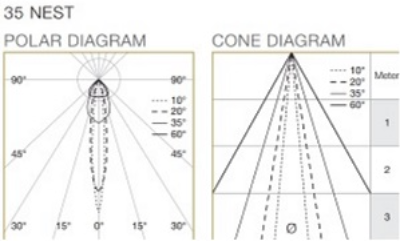

Recessed round pinhole downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
700LM
Finishing
MATT WHITE
IP Rating
IP54
Color Rendering
CRI 85
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.370 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 86 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
WALLWASHER
INDOOR LIGHTING

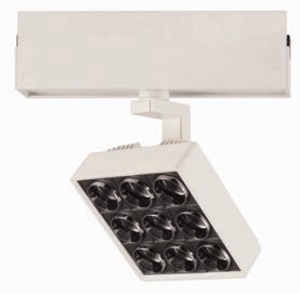

EVO track mounted Zero Compasso wallwasher, available in three sizes (Ø42, Ø66 and Ø100mm) versatile aiming angle tiltable vertically 0°-90° and rotatable horizontally 360°. Available in regular and long arm version for deep recessed and pendant EVO track. Perfect for museums and galleries applications. Wallwashing with high uniformity can be used to illuminate artwork and sculptures. Vertical uniformity creates a wide and distinguished spatial impression by brightening the entire height of the wall. DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device.
LUCI
LED LIGHT BAR
INDOOR LIGHTING
Flexible strip light with high color rendering >Ra 96, ideal for backlit lighting with an artificial sunlight effect, light for shelves in retail shops, and inspection lighting of printing, cosmetics and textile, etc.
SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable square downlight luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.
