PHOS

RECESSED DOWNLIGHT
INDOOR LIGHTING

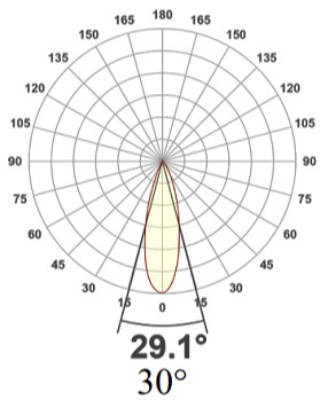

NA-EE-MTF_3W-2700K-30°

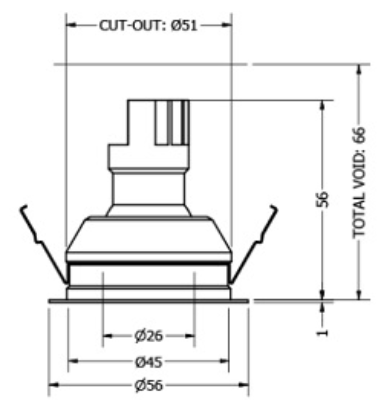

The Nano Eclipse Mini Trim Fixed is a recessed downlight, with a Ø56mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power
3W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
275LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90+
Driver
ON/OFF DRIVER

See more

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 18°, luminous flux: 4390 lm, wattage: 48 W, delivered lumens 91 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 163 × 190 mm, weight 2.76 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

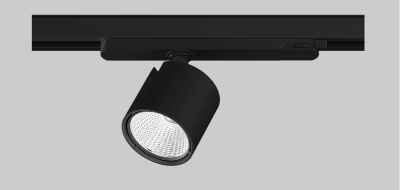

XAL
TRACKLIGHT
INDOOR LIGHTING


BEGA
BOLLARD
OUTDOOR LIGHTING
Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Safety glass Silicone gasket Reflector made of pure anodised aluminium Luminaire with mounting plate for bolting onto a foundation or an anchorage unit Mounting plate with 3 fixing holes each ø 8.5mm · Pitch circle ø 100mm and ø 132mm. IP65,IK07.
