LUCI

LED STRIP

INDOOR LIGHTING

LFY7-T1000W-L27-CL-I-2

LED luminaire come with 2 types of LED pitch 7.1 or 17.8mm for profile and cove lighting. 5 types of wattage 2W/m to 15W/m in same LED pacakge to match CCT. High efficient LED package achieving up to 185 lm/w.

Specification

Power

2W/M

Color Temperature

2700K

Light Source Type

LED

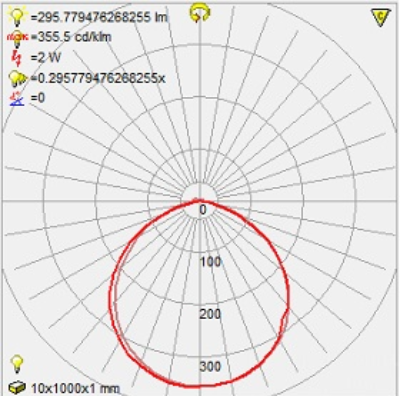

Lumen Output

298LM/M

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 93

Driver

ON/OFF DRIVER

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – Water depth 5 m. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti. Round or square attachment cover, height 3 mm. POW-LED cold white, warm white, neutral white. POW-LED blue. Multichip POW-LED RGB. Operating mode: constant current. Rotationally symmetric light distribution. Cable pressure sleeve, stainless steel 316Ti. Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube and connection socket. Supplied with 3m of UW-cable.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.93 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 128 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

PHOS

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Luminaire is unique, elegant small aperture. 360° rotation and 90° tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires. Driver to be remote mounted. The ingress protection degree is IP65.
