LINEALIGHT

UNDERWATER LIGHT
OUTDOOR LIGHTING
RODIX_84213N25

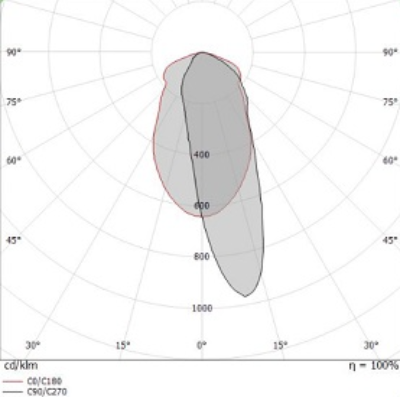

Single emission submerged for outdoor application. The natural white LED light source with a flood light distribution is composed of 6 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1818 lm, with a 129.9 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of brushing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK09.

Specification

Power
28W
Color Temperature
4000K
Light Source Type
LED
Lumen Output
2075LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LIGMAN
WALL LIGHT
OUTDOOR LIGHTING

Stainless steel body in grade 316. Single cable entry. One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 316. Durable silicone rubber gasket. Clear toughened glass. Remote driver is included for constant current (CC) products and is not IP-rated. Remote driver is not included for constant voltage (CV) products. Remote box IP-rated is not included and is to be ordered separately for constant current (CC) products. Recessing box in PVC is included. Luminaire must be submerged when operational. Maximum depth 2 m

LIGHTFORMS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
The Target Line is increasingly becoming a Light Forms classic. Many lighting design opportunities here. All the mounting options, including track. A huge range of LEDil optics (wide, narrow, black, chrome, white..). Integral control gear, in a very compact form. The Target Line can have integrated Linear LED, but the main feature with the Target Line is the precision Low Glare optics. These precision optics allow plenty of lumen range, in a Low Glare, compact package. The aesthetics and size of the Target Line mean its got the correct look and performance for all applications. Control gear is always integral, despite the compact form - and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.
SPARK
TRACKLIGHT
INDOOR LIGHTING
Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
FORMALIGHTING
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Round or square wall/ceiling luminarie with body in cast aluminium, inclusive of vandal resistance polycarbonate opal diffusers and weatherproof durable silicone gasket. Countersunk external screws made of stainless steel. Simple to install with 2 cable entries to facilitate through wiring and easy click system removable diffuser.
