IGUZZINI

Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply. The sizes 3 and 4 can be equipped with Casambi ready drivers and be dimmed via Bluetooth Low Energy technology.

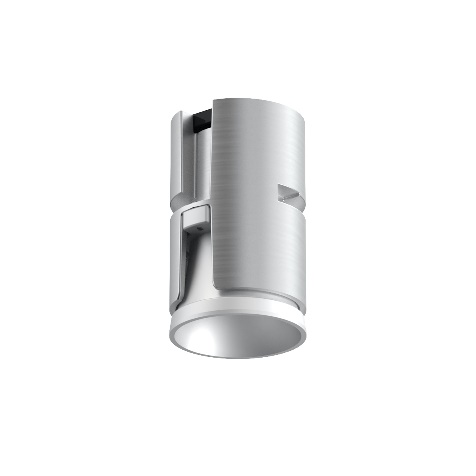

Round recessed downlight made of die-cast aluminium with white powder-coating finish

(RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurements Ø78mm x

97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm;

luminaire's weight is approximately 210g; rotation 350° and pivot max. 30°; CCT 3000K with

a System luminous flux of 800lm; high color rendering at an index of CRI90; after a lifetime of

50000h L80B10 min. 80% of the luminous flux with energy e

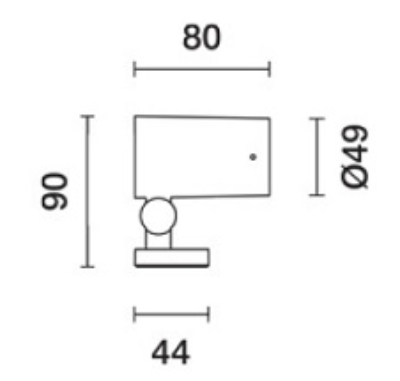

IP65 Spotlight body, bracket and closure flange made of AISI 316L stainless steel with pickling and passivation treatment. With the addition of SurfShield a special scratch-resistant finish treatment that ensures increased resistance of the steel to chemical and atmospheric aggressions. Provided with surge protection electronics and protection against polarity reversal during wiring. Supplied with 5M of cable to powered a 24V CV transformer to be wired in parallel. IP65/IP68, IK08

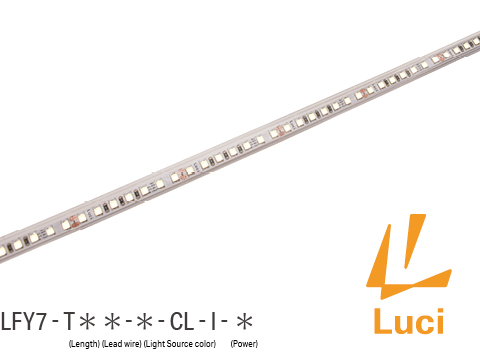

Flexible strip light with high color rendering >Ra 96, ideal for backlit lighting with an artificial sunlight effect, light for shelves in retail shops, and inspection lighting of printing, cosmetics and textile, etc.
