IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

RM03.83

Round fixed luminaire designed to use LED lamps with C.o.B. technology. Version with rim for surface-mounting. Prismatic thermoplastic reflector complete with flux enhancer. Dissipater made of painted grey die-cast aluminium. Product complete with LED lamp in warm white colour tone (3500K). General lighting beam.

Specification

Power

24.5W

Color Temperature

3500K

Light Source Type

LED

Lumen Output

2562LM

Finishing

BLACK TRANSPARENT

IP Rating

IP20

Color Rendering

CRI 90

Driver

DALI DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 188 x 188 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

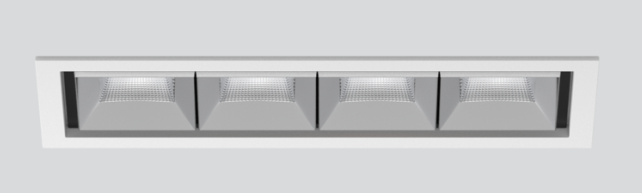

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.560 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 57 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

Miniaturized lighting fixture Laser Blade XS Linear optical element with 5 cells (5 LEDs) Recessed lighting fixture with a radiant surface in die-cast zama, complete with springs for installation. Flush ceiling version. For recessed installation in false ceilings, a specific adapter is required, available with a separate code. LED Single Chip High Power 3500K LED Color Rendering Index -CRI90- High-definition Opti Beam reflector in metallized thermoplastic material. FLOOD optics.
