LUCI

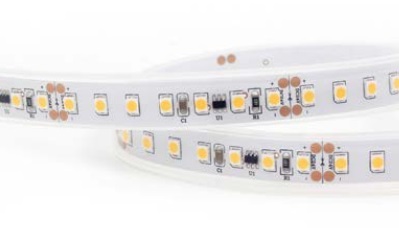

LED STRIP

OUTDOOR LIGHTING

LRF-T1000W-L30-DF-O-9

Beautiful surface emission enhances the versatility of design possibilities. Available in 160 different lengths ranging from 25mm to 4000mm for IP67 specification. Revolutionize designs with sleek 5.8mm dot-free tape light! 9.7 W/m, 535 lm/m.

Specification

Power

9.7W/M

Color Temperature

3000K

Light Source Type

LED

Lumen Output

566LM/M

Finishing

SILICONE

IP Rating

IP65

Color Rendering

CRI 91

Driver

0-10V DRIVER

FORMALIGHTING

PENDANT

INDOOR LIGHTING

Pendant mounted luminaire with light body in extruded aluminium. Available in two different sizes. Boths are available in a version inclusive of integrated diamond faceted no-dazzle screen in thermoplastic. Polaris 20 comes also equipped with a satin opal diffuser. Supplied with ceiling canopy and pre-installed 1.5m electrical cable and with 2 x 1.5m pendant steel wires.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Outdoor Linear with a asymmetric wallwasher light distribution composed of 30 power LEDs. Luminaire body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; IK10.

WE-EF

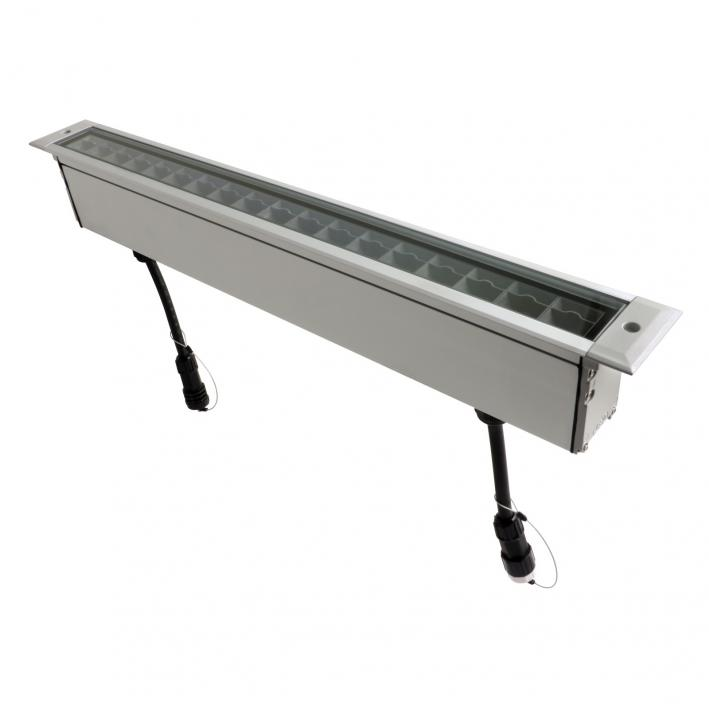

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK08. Marine-grade all aluminium construction. Anodized aluminium extrusion. PCS hardware. Silicone rubber gasket. Safety glass lens with opal diffuser. Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tyres, at a weight up to 5 tonnes per wheel. Max. static load, 3 tonnes (according to DIN EN 60598-2-13). Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible cable, including sealable junction box SJB. Linear PMMA LED lens. Factory installed LED circuit board. LED board can be easily removed for upgrading. Luminaire is factory sealed and does not need to be opened during installation. Integral electronic converter with DALI interface in thermally-separated compartment.
