Product Detail | Bloxlimited

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

GINKO 3.4_15W-38°

Ginko 3. 4 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of,body in anticorodal aluminium, AISI 316L stainless steel bracket made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available: 8°-38° and adjustable 8° x 66°- 36° x 70°-. IP66, IK07.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

240LM

Finishing

ANHRACITE

IP Rating

IP66

Color Rendering

CRI ≥90

Driver

CASAMBI

LUMASCAPE

INGROUND UPLIGHT

OUTDOOR LIGHTING

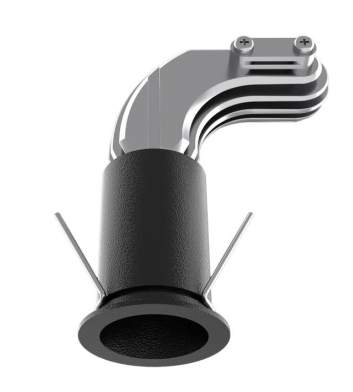

MEYER

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 5°, luminous flux: 2855 lm, wattage: 46 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
