LUCE & LIGHT

LED pendant luminaire with direct light, made of high-quality extruded aluminium profile; black finish (RAL 9005) and chrome black reflector; GR6d-15 socket - reverse polarity protection and tool-free replacement without opening the; incl. illuminant DSD26-L120-830-BC as per ZHAGA Book 14; ON-OFF driver; 300-800mA; Dimension 1182mm x 45mm x 80mm; light color 3000K; good color rendering of CRI80; at least 80% of the luminous flux after a service life of 50000 hours L80B10; 5-year manufacturer's guarantee; Radiation characteristics with a beam angle of 80°; UGR<19 (up to 550mA); Luminance <1000cd/m² for gamma >= 65°according to EN 12464-1; Protection type of the housing IP20; Luminaire impact resistance IK05; can be installed as a single luminaire or as a continuous light band; 5 x 2.5 mm² through wiring; System luminous flux: 1895lm at 16W (118.4lm/W) @300mA (UGR<19), 2208lm at 18W (122.7lm/W) @350mA (UGR<19), 2455lm at 20W (122.8lm/W) @400mA (UGR<19), 2755lm at 22W (125.2lm/W) @450mA (UGR<19), 3097lm at 25W (123.9lm/W) @500mA (UGR<19), 3299lm at 27W (122.2lm/ W) @550mA (UGR<19), 3628lm at 30W (120.9lm/W) @600mA (UGR<22), 3884lm at 32W (121.4lm/W) @650mA (UGR<22), 4253lm at 36W ( 118.1lm/W) @700mA (UGR<22), 4449lm at 38W (117.1lm/W) @750mA (UGR<22), 4646lm at 40W (116.2lm/W) @800mA (UGR<22)

Square semi-recessed spotlight made of aluminium; surface black/gold (housing/light inset); luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows

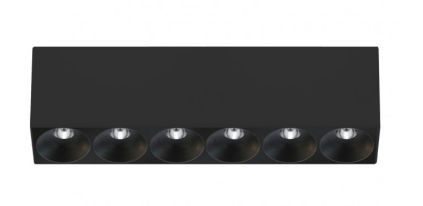

The Zero Mini Track Series is an ideal miniature spotlight designed to revolutionize showcase and display lighting. Zero Mini Track Series meets all the complex architectural lighting requirements by providing impressive light performance. Furthermore, it offers ease-of-use, thanks to its simple installation and integrated magnetic system for mounting accessories.

Single emission projectors for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 849 lm, with a 126.7 lm/W nominal luminous efficacy.
