LUCENT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

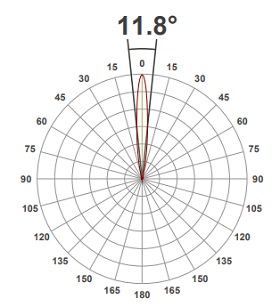

EDGE90 FIXED FIRE RATED_12°

Edge90 fixed fire rated downlight with Ø45mm black Edge aperture and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both white or black finish as standard. This product can accommodate the Lucent LED50 ONE GEN2 (90CRI) or LED50 ONE ULTRA (98CRI). This Fire Rated product was tested in a timber joist ceiling construction consisting of double thickness plasterboard ( 2 x 12.5mm) , wooden joists and (Egger) chipboard flooring.

Specification

Power

13.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

759LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI ≥90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 240 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.640 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Direct linear luminaire with Warm White multi-LED, made of extruded aluminium with tempered glass screen and stainless-steel screws. It offers multiple installation options, high weather and UV resistance, IP66 connectors for pass-through wiring, and uses a Flood optic with Opti Beam Reflector. Power supply and control card (DMX/DALI) are sold separately.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 81 x 81 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed luminaire with contact frame. Fixed version. The LED is set back to minimize glare . The main body is made of diecast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector wide flood optic. Structure with die-cast aluminium external contact frame with a single white finish. The internal ring is made of thermoplastic available in a range of painted and metallised finishes.
