Product Detail
Home Products Detail

Products

PHOS

RECESSED DOWNLIGHT
OUTDOOR LIGHTING
MX-EE-MTA_2700K-9W-10°

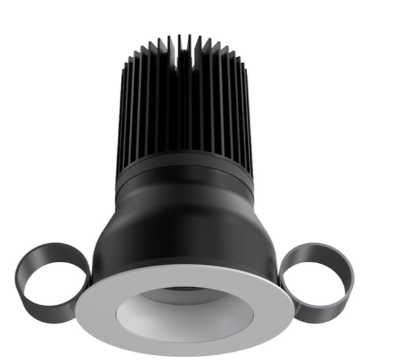

The Eclipse Round is a fixed recessed downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power
9W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
481LM
Finishing
WHITE
IP Rating
IP54
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

PHOS
RECESSED DOWNLIGHT
INDOOR LIGHTING

The Maxi Eclipse Mini Trim is a fixed, recessed downlight with a Ø120mm bezel and features a beautifully sculpted anti-glare baffle. The Maxi Is a high output downlight while still maintaining a surprisingly compact form.Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

LINEALIGHT
FOOT LIGHT
OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The super warm LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 136 lm, with a 136.0 lm/W nominal luminous efficacy. The device body is made of aluminium 6026 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
EWO
POLE LIGHT
OUTDOOR LIGHTING
FA–Series Outdoor Pole light made of die-cast aluminium material and polyester powder coating finish. Anthracite finish color and safety glass. Luminaire available in Pole mount and Wall mount version. FO420 come with 0°-90° adjustable and horizontal pole mount. Suitable for Building area, high bay, street or walkway lighting application. IP66, IK08
