LUCI

Ginko 1.0 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available: 12°, 19°, 36°, sharp 38°, 58°, 16°x36°, 36°x16°, 12°, 19°, 36°, 58°. IP66, IK07.

Inground uplight cover ring luminaire made of stainless steel housing and cast stainless steel. Steel grade number 1.4301. Clear safety glass, reflector made of pure anodised aluminium material. 2 mounting holes ø 5mm Distance apart 120mm, 1,8m water-resistant connecting cable 05RN8-F 3G1@ with implemented water stopper and 1.2m PVC cable conduit. BEGA Thermal Switch® Temporary thermal shutdown to protect temperature-sensitive components Safety class I Protection class IP 68 10m, IK10. DIMENSION : (W)115x(H)100x(D)130mm.

PURE M

PUM1-9303028F-BB

Tracklight round made of die-cast aluminium for 3-Phase Track System with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; System Power 28W; measurements tracklight Ø90mm x 200mm; rotation 355° and pivot max. 90°; CCT 3000K with a System Luminous Flux of 2700lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 30° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work UGR<19; degree of housing protection IP20

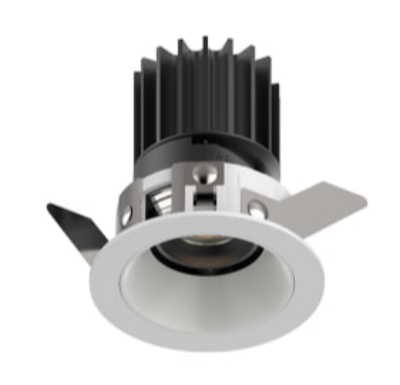

Featuring a Ø75mm spring-mounted plate to enable the driver to be mounted in the ceiling void behind. The Maxi Is a high output downlight while still maintaining a surprisingly compact form. 360° rotation .90° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires. Driver fits through ceiling cut-out.
