PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

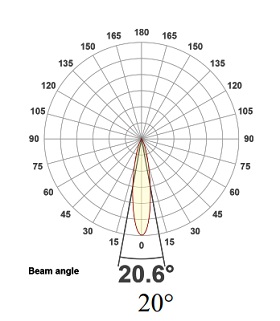

EY-MTF_2700K-14W-20°

The Eyeconic Mini Trim Fixed is a recessed, fixed downlight with a Ø62mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

Specification

Power

14W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

650LM

Finishing

WHITE

IP Rating

IP54

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The super warm LED light source with a flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1108 lm, with a 110.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uvresistant polycarbonate. The ingress protection degree is IP44.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
