FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

SOLO SQUARE - TRIM_ RQ99MC36-902724D010

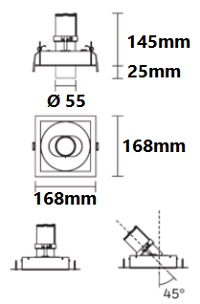

The Solo Square Series recessed spotlight body in cast aluminum, is available in 2 sizes Solo Square 168 x 168mm and Solo S 112 x 112mm trim and trimless versions. The unique pull-down mechanism enables Solo to function as either a downlight, a regressed accent light, or an exposed lamp head able to emulate a surface or track fixture. The light head of Solo Square is fully adjustable with vertical tilt up to 45° and 40° for Solo S square; and rotatable horizontally up to 360°

Specification

Power

20W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1442LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

LUCENT

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Edge90 fixed fire rated downlight with Ø45mm black Edge aperture and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both white or black finish as standard. This product can accommodate the Lucent LED50 ONE GEN2 (90CRI) or LED50 ONE ULTRA (98CRI). This Fire Rated product was tested in a timber joist ceiling construction consisting of double thickness plasterboard ( 2 x 12.5mm) , wooden joists and (Egger) chipboard flooring.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.25 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
