XAL

SURFACE LINEAR LIGHT
INDOOR LIGHTING

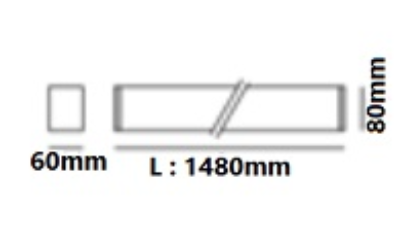

MINO 60 MID LUMEN_046-41L5018G

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface black powder coated; suitable for wall or ceiling mounting; lighting profile (end cover pre-assembled) available in advance for installation; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management.

Specification

Power
16.6W/1.5M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1670LM/1.5M
Finishing
BLACK COLOR
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1074 lm, with a 89.5 lm/W nominal luminous efficacy. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 12 W. The power supply cable is included and features a 0.17 m length. The device features protection class III and can be ceiling-mounted, with a 215 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

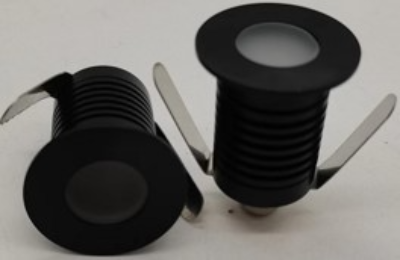

INGROUND UPLIGHT
OUTDOOR LIGHTING
The Uplight S product range are luminaires with extremely shallow recess depth. This product feature ensures that the luminaries do not collide with existing infrastructure in the ground, such as electrical or water conduit. Adjustable collimator optics with various different light distributions make these products versatile tools for architectural and landscape lighting. Optimal glare control can be achieved by the use of honeycomb louvres as an accessory.
DALITEK
CONTROL SYSTEM
INDOOR LIGHTING

DR485S-D is a connection device for LDS lighting control system and interface for sensors (max 25). DR485S-D combined with a programmable logic controller which handle conditional, sequential logic and operation functions. Error messages can be filter out for better tranmission and accuracy of information. DC12V, 200mA. Control input: 2 × RS485 network serial port. DIN rail installation

LUMASCAPE
FLOODLIGHT
OUTDOOR LIGHTING
A small architectural grade spotlight that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Supplied standard with designer optics, providing superb color-over-angle consistency. Available with integrated Dali control, 0-10 V dimming or as non-dimmable.DIMENSION: 235(L)*68(W)*228(H)mm.
