IGUZZINI

LINEAR DOWNLIGHT
INDOOR LIGHTING
LASER BLADE XS HIGH CONTRAST_PH98_3000K-42°

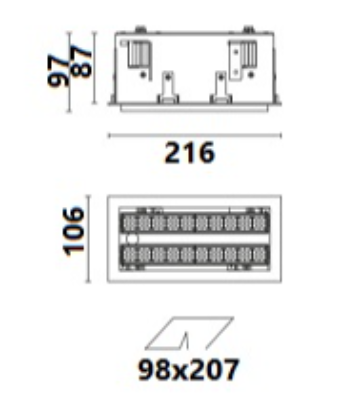

Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The two linear elements with 10 lighting cells, in die-cast aluminium and independently adjustable, can be used to direct the emission with a tilting adjustability of +/- 20°. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen.

Specification

Power
18W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2936LM
Finishing
BLACK
IP Rating
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 65 x 65 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
SURFACE TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.
SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

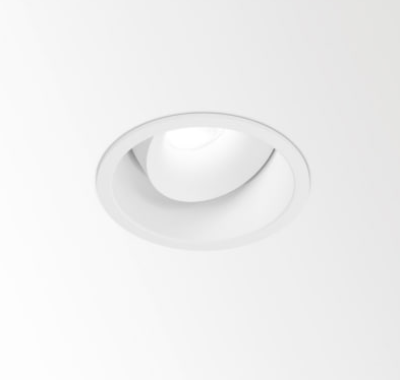

Recessed adjustable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

XAL
SUSPENDED LINEAR LIGHT
INDOOR LIGHTING

Suspended luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; Luminaire come with 1.5m cable suspension with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; freely positionable.

DIMENSION : L880*W60*H80MM
