IGUZZINI

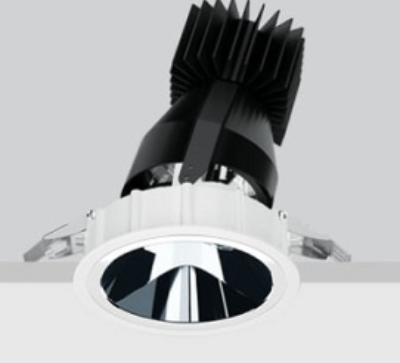

Round recessed downlight in die-cast aluminium housing, surface in traffic white finishes. 360° rotatable and 30° tiltable. Suitable for ceiling thickness of 2-25 mm, passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. IP40

DIMENSION : Ø80*H48MM

Lightplane 6 is a large, linear luminaire that provides direct or indirect illumination in suspended, wall and surface-mount models. The luminaire features an integral driver along with a high impact satin diffuser. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+ White.

Extruded EN AW-6060 aluminium profile, die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

The artIO is a comprehensive integration module for the Artistic Licence cueLumen series. artIO serves two purposes, as a system integration module for the artCore or cueLumen core and as an artUI gateway, allowing the expansion of a system to unclude more than 16 artUI user interfaces. The setup is all handled via the artCore processor or cueLumen core. As a system integration module the artIO provides Serial 485 and RS232 integration, along with enabling the connection of 2 volt free inputs an
