LINEALIGHT

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, wall washer lens with optical structure and integral, adjustable glare shield, tilt range: 0‑13°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 30° / 75°, luminous flux: 424 lm, wattage: 11 W, delivered lumens 40 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.7 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

Single emission lines for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 9 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2718 lm, with a 148.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodisedN aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67,IK10.

Luci Creide lens" is a cove lighting for narrow spaces which focuses on beam angles and stretch of light. The fixture design is based on compact cross-sectional size and basic specification of "Luci Creide®" Special intensive luminous distribution by linear lens between LED and diffused cover creates an extended and smooth gradation of light.

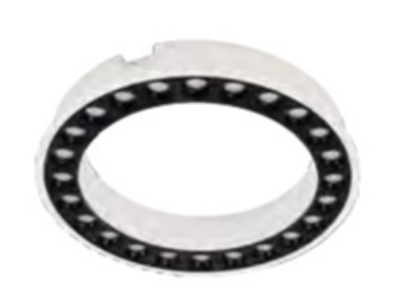

Circular round luminaire made of die cast aluminium housing, UGR <17, available in Recessed OR Surface mount version. Different diameter from Ø80 ~ Ø218mm. Wattage from 8W ~ 30W. Beam angle have 20°, 34° and 48°. IP20
