The artIO is a comprehensive integration module for the Artistic Licence cueLumen series. artIO serves two purposes, as a system integration module for the artCore or cueLumen core and as an artUI gateway, allowing the expansion of a system to unclude more than 16 artUI user interfaces. The setup is all handled via the artCore processor or cueLumen core. As a system integration module the artIO provides Serial 485 and RS232 integration, along with enabling the connection of 2 volt free inputs an

The Vega Decorative offers amazing LED brightness for architectural lighting projects and incorporates a decorative effects wheel for color change or twinkle effects. Control functionality consists of 2 options: 0-10, DMX, and Manual dimming.Fitted with a standard 30mm (1.18”) fiber port connector, this illuminator is suitable for both new installations and retro-fitting to existing fiber optic installations.

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium and features a embossed black ral 9005 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.32 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 18 W. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 89 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

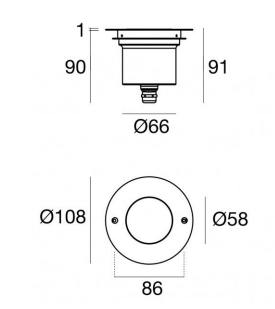

Luminaire made of copper, brass and stainless steel. Crystal glass coated 2 fixing holes ø 5.5 mm, 108 x 108 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-280 V. Safety class I. Protection class IP 64. Dust-tight and protection against splash water. Impact strength IK07. Protection against mechanical. impacts < 2 joule, r – Safety mark, c – Conformity mark.
