ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

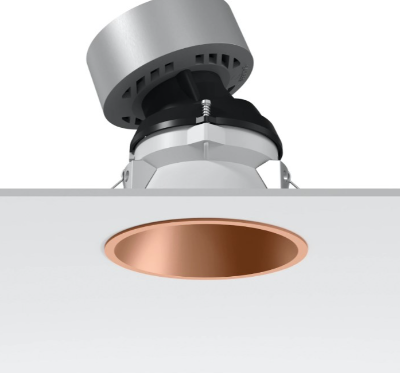

CASTER2_25D

A series of pinhole downlights with reflector available in various sizes and finishing, designed with a deep aperture for optimum glare control. The Castor downlight is equipped with an off-set tilt mechanism that maximises light output for most demanding applications.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

574LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 85

Driver

ON/OFF DRIVER

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

The luminaire housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: silver grey , all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 205°,

cable gland: M20, connecting terminal: 3 pole, efficient highgloss aluminum reflector in combination with hybrid lens fornarrow beam light distribution in shallow luminaire housing, DIMENSIONS: 280*75*280mm.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of plaster and features a white finish; the diffuser is made of pet. The ingress protection degree is IP20; the total weight is of 0.25 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

DALITEK

CONTROL SYSTEM

INDOOR LIGHTING

DCP8 series push-button control panels were designed with several features. Nice appearance, easy to use, good quality and economic benefits for LDS lighting system. The panels support 2 sets of keys configurations, which are 4 keys & 8 keys. Each key has LED back-lit engraved wordings indicators. The panels have a RS485 interface for communication.
