The Aeon Flex Pro boasts advanced technology and adaptability for large applications across a building facade. Achieve consistent, dot-free illumination with an IP68 rating, and choose from up to 5000mm lengths. The new flexible channel accessory improves rigidity and control in bends. Made with advanced polyurethane for durability and longevity. DIMENSION : L1000*W18*H16MM

 Flex Tube Pixel is a flexible, direct view LED strip, that features individual control of every 3.28” (83.34mm) section. It comes in a 5m spool or custom built lengths to suit project requirements, and features a highly durable second-generation silicone body, which is outdoor rated, high impact resistant, and 3G vibration rated.

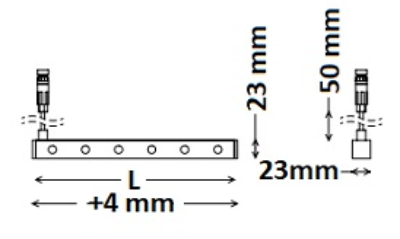

DIMENSION : L1000*W17mm*H16mm

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. 3 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Unique mini square-shape structure design, Aluminum alloy housing, Multiple light distribution options, Zero luminous depreciation at 3000hrs, long lifespan with low power consumption, 70-80 energy-saving, and environmental friendly, Various installation bracket optical accessory options, Easy for installation, replacement and maintenance, Compact design for versatile use in the outdoor applications, such as ancient building, temple, small town, etc.

DIMENSION : 59.4*59*86.5MM
