LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

MODOC_RF_C00693WHWWF_3000K-52°

Single emission recessed downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

Specification

Power

10W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1236lm

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

1-10V DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

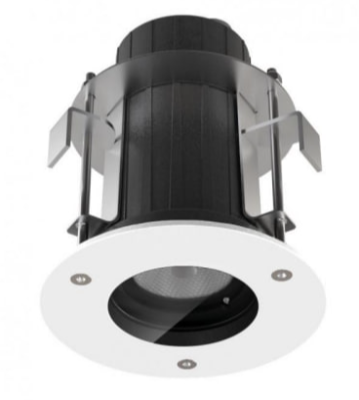

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.048 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of aluminium 6026 and features a anodised aluminum finish, processed by means of 20 µm anodizing. The ingress protection degree is IP67, IK09.

LINEALIGHT

WALLWASHER

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 360 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.100 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.
