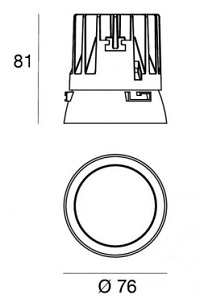

MODOC_RF_C00693WHWFL_3000K-29°
Single emission recessed downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

Specification

Power
10W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1379LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
1-10V DRIVER

See more

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1101 lm, with a 115.9 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.5 kg. The total absorbed power is 10.5 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
BOLLARD
OUTDOOR LIGHTING

Radial diffusion bollard & pole for outdoor application. The warm white LED light source with a asymmetric 180° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65, IK10.

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 5076 lm, with a 139.1 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The total absorbed power is 41 W. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

SIMES
INGROUND UPLIGHT
OUTDOOR LIGHTING
user 6 mm thick. Electronic driver 220V/240V 50Hz. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Silicone gaskets. Recessing box in aluminium. Fast connector IP68 included.
