Product Detail | Bloxlimited

XAL

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

ARY_049-5231417M 005-3521017 002-90732_2700K-25°

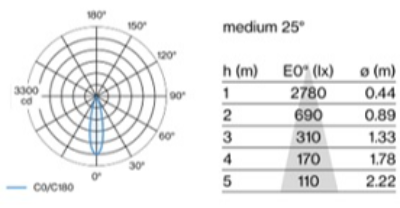

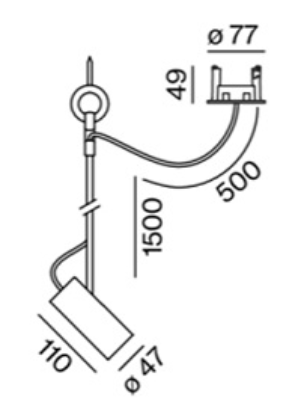

Decorative suspended luminaire in aluminium; surface white powder coated; height adjustable U-profile pendant rod suspension (white) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (white) for multiple positioning of the luminaire in the room; spotlight head 265° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 25° beam; degree of protection IP20; PC2 220-240V; ceiling recessed canopy with trim traffic white; suitable for ceiling thickness of 2-25 mm; incl. converter, non dimmable; external converter for ceiling insertion; light source not replaceable; control gear replaceable by an authorized professional.

Specification

Power

11.2W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

642LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Pivot 1.7 outdoor applications surface mounted (ceiling, wall, floor) housing made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass. Optics available for 5°, 8°, 11°, 17°, sharp 21°, 34°, 43°, 45°, sharp 51°, 54°, 15°x47°, 46°x16°. IP66,IK07.

BEGA

RECESSED DOWNLIGHT

INDOOR LIGHTING

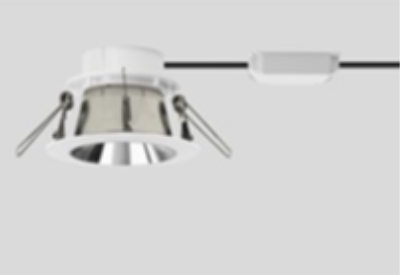

Recessed ceiling luminaire »PRIMA« with a remote power supply unit Luminaire housing made of cast aluminium Reflector surface made of pure aluminium. Recessed ceiling luminaire · indoor luminaire with symmetrical wide beam light distribution and a remote power supply unit, dimmable via a phase or -section dimmer. For installation in suspended ceilings of 5-30 mm in interior applications. The ingress protection degree is IP20, IK06.

DIMENSIONS; ( WxHxD ) ( 108x72x130)mm.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

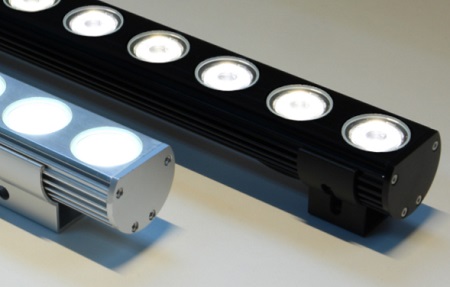

Double emission wall lights for outdoor application. The warm white LED light source with a flood light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.5 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
