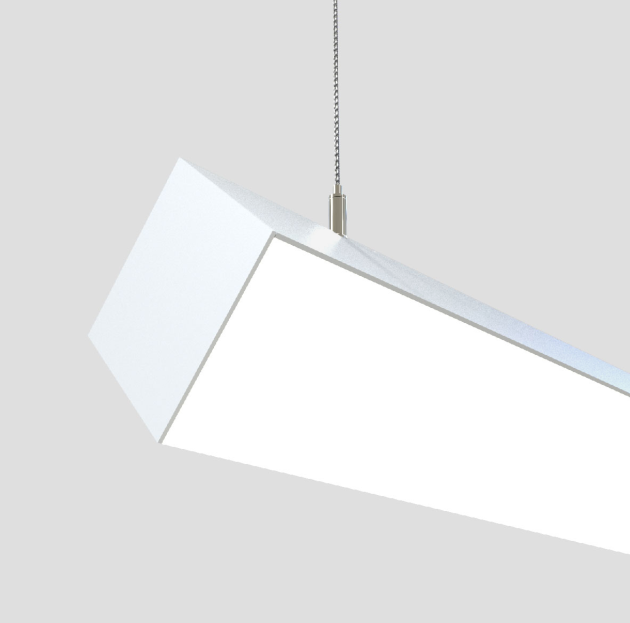

LINEALIGHT

Luminaire made of aluminium alloy, aluminium and stainless steel Crystal glazing, Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@. Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz, DC 176-264 V. DC Start ≥ 198 V, Safety class I Protection class IP 44, Protected against granular foreign bodies > 1 mm and splash water, r – Safety mark, c – Conformity mark.

Single emission projectors for indoor application. The warm white LED light source with a shaper light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.445 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Round recessed downlight made of die-cast aluminium with white powder-coating finish

(RAL 9016) and white reflector; ON-OFF Driver; System Power 13W; measurements Ø78mm x

97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm;

luminaire's weight is approximately 210g; rotation 350° and pivot max. 30°; CCT 3000K with

a System luminous flux of 800lm; high color rendering at an index of CRI90; after a lifetime of

50000h L80B10 min. 80% of the luminous flux with energy e

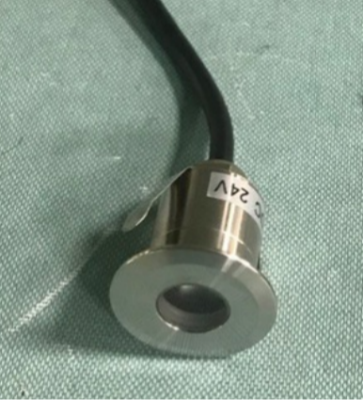

IP67. IK09. Stainless steel inground section. Die-cast dome made from marine-grade aluminium alloy. Luminaire can be driven over at low speed. 5CE superior corrosion protection including PCS hardware. Optical lens made from PMMA. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. CADoptimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout included in supply. Optional 2200 K version available.
