Product Detail | Bloxlimited

FORMALIGHTING

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

ZERO DUE 100_1432BC33-903038D010-32°

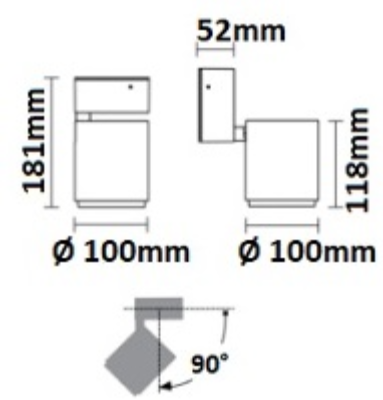

Ceiling and wall mounted spotlight with light body and driver canopy in cast aluminium. Inclusive of reflector in metalized PC. Light body is designed for passive cooling. Available in 3 different sizes. Tiltable vertically 0-90° and rotatable horizontally 360°.

Specification

Power

24.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2045LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The dynamic white LED light source with a spot light distribution is composed of 25 powerleds LEDs. Luminaire body and mounting frame is made of die-cast aluminium with a embossed black RAL 9005 finish, processed by means of powder coating. The ingress protection degree is IP20

IGUZZINI

POLE LIGHT

OUTDOOR LIGHTING

Spotlight designed to use LED lamps and a Flood optic. Consists of a die-cast aluminium optical assembly, bracket and box for the ballast with a clear tempered sodium-calcium safety glass cover. The luminaire is fitted with a double cable gland for pass-through wiring. The optical assembly can be adjusted on a horizontal plane at an angle between -50° / +90°.

MEYER

POLE LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections,integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 22 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
