FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

COLOSSEO 75 ROUND TRIM_RP19MC31-903026D011_26°

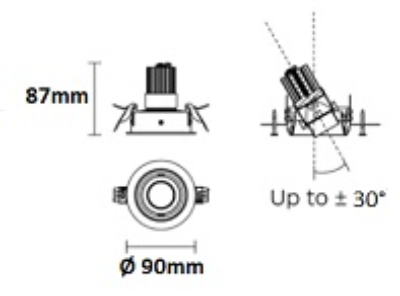

Colosseo Round series fully adjustable luminaire designed to accommodate any recessed lighting applications. Round-shaped mounting trim in cast aluminum with spring for trim installation or brackets for trimless installation on a ceiling thickness 6-15mm. Colosseo is available in three sizes with light head diameters of 75mm, 90mm and 120mm, vertical tiltable ±30°. Luminaire body inclusive of snoot-in cast aluminum, Easy relamping via removable front ring by snap-in catch action.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

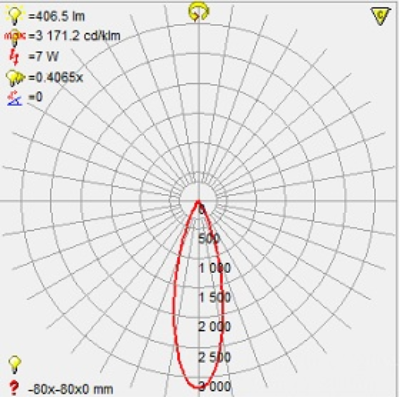

411LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98673 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

DELTALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Grid On is the surface mounted member of the Grid family. Similar to Grid In, Grid On combines multiple spots in one fixture. Thanks to the individual flexibility of each spot, Grid On is multi applicable and its minimalistic design makes it usable in many occasions. Also in the same spirit of the recessed version, the Minigrid On is the miniature version, it comes as a small box with integrated driver and easy-to-install snap-in spotlights.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aluminium 6026 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.
