FORMALIGHTING

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

SOLO S-TRIM_RQ85MN21-903018D011_11°

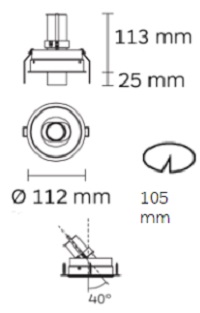

Round-shaped recessed spotlight, body in cast aluminum, available in Ø168mm and Ø112mm trim and trimless versions. The trim version comes with a spring for installation on a ceiling thickness of 1-25 mm, and the trimless version comes with brackets for a ceiling thickness of 6-25 mm. The unique pull-down mechanism enables Solo to function as either a downlight, a regressed accent light, or an exposed lamp head able to emulate a surface or track fixture.Fully adjustable light head is tiltable up to 45° and rotatable horizontally up to 360°.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1158LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with three medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

XAL

SURFACE LINEAR LIGHT

INDOOR LIGHTING

Luminaire housing made of extruded aluminium profile. light tight final end caps made of aluminium. No visible screws, angular design and surface pure white powder coated. Suitable for ceiling mounting. Luminaire profile can be pre-mounted, remaining lamp components mounted without tools. LED light inset consisting of highly reflective lacquered aluminium for improved thermal management.HPO (High Performance Opal) cover for uniform illumination degree of protection IP20.

CDN LIGHTING

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

DELTALIGHT

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Dot.com come with Small version only needs 25mm of width, a nearly invisible appearance yet with visible impact. The Medium range includes an adjustable version - with tilting possibility of 30° - ideal for instance to emphasize an artwork on the wall. With an output up to 12W per luminaire, the Large range is the most powerful within the Dot.Com series. It comes in both recessed and surface mounted solutions. The luminaire is not only limited to spotlight beam angles, it also has linear wallwashers in its range for a soft, even light effect on vertical surfaces. These come as single luminaires, as modules to fit in the magnetic profiles and as a bespoke trimless profile solution, perfect to adapt the light to your specific desires.
